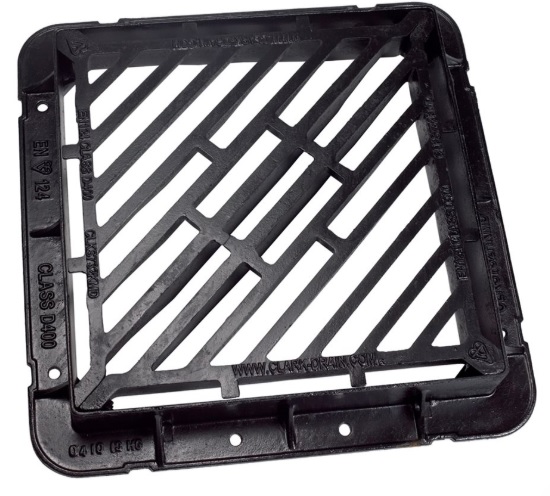

The Clark Drain CD 732H KMD is a double triangular ductile iron gully grating and frame for highways. It is a double triangular, type P and non-rock gully grating.
The CD 732H KMD has internal dimensions of 600mm x 600mm and external dimensions of 748mm x 748mm x 100mm. It also has a clear opening of 600mm x 600mm (for a 600mm diameter gully) and a waterway area of 2203cm2.
Key Features:
- Double triangular gully grating and frame
- D400 Loading Classification
- Double triangular, type P and non-rock
- BS EN124-2:2015 and DMRB CD534 accreditations
- Applications – highways
SPECIFICATIONS
Application
Highway
Accreditations
BS EN124-2:2015, DMRB CD534
Loading
D400
Gratings
Double Triangular, Type P, Non-Rock
Material
Ductile Iron
Internal Dimensions
600 (L) x 600 (W)
External Dimensions
748 (L) x 748 (W) x 100 (D)
Clear Opening
600 x 600 (For 600 Diameter Gully)
Water Way Area
2203cm2
